0.1% Flicker-Free Dimming Drivers: Eliminating Light Jitter in European & Middle Eastern Luxury Venues | LEDER Illumination

Meta Description: Discover how LEDER Illumination's 0.1% ultra-deep dimming drivers eliminate light jitter in private theaters and high-end restaurants across Europe and the Middle East.

Quick Answer / TL;DR

• The 0.1% Threshold: Standard 1% dimming is insufficient for extreme dark fields (private theaters, high-end dining) because the human eye perceives 1% measured light as 10% brightness. Ultra-deep 0.1% dimming is mandatory for true visual comfort.

• Flicker Mitigation: Achieving 0.1% dimming requires advanced hybrid CCR (Constant Current Reduction) and high-frequency PWM (Pulse Width Modulation) to prevent stroboscopic effects and light jitter.

• System Integration: High-end architectural designs demand seamless integration with DALI-2 and Matter protocols to ensure smooth, logarithmic fade-to-black without step-changes.

• Regional Compliance: Elite projects in Europe and the Middle East require stringent adherence to CE, ENEC, and SASO certifications, ensuring reliability under local grid conditions.

The Physics of Dark Field Lighting and Visual Perception

In architectural lighting design for luxury spaces, the most challenging environment to illuminate is the "dark field." In high-end Western restaurants and luxury private cinemas across Europe and the Middle East, the ambient lux levels are kept intentionally minimal.

When adapting to these extreme low-light environments, the human pupil dilates fully, maximizing scotopic vision. In this state, the retina becomes hyper-sensitive to micro-fluctuations in light output. A dimming driver that performs adequately at 20% or even 5% output will often expose severe flaws—such as stepping, jitter, or visible flicker—when pushed to 1%. For architectural aesthetics and Human Centric Lighting (HCL), standard 1% dimming simply fails to provide the seamless transition required by discerning clientele.

Data Point https://www.google.com/search?q=%231: According to CIE (International Commission on Illumination) TN 006:2016, human light perception follows a logarithmic curve. Measured physical light output at 1% is perceived by the human eye as approximately 10% brightness. To achieve a perceived brightness of 1%, the physical light output must be reduced to an ultra-deep 0.01% to 0.1%.

Engineering the 0.1% Deep Dimming Driver

Achieving 0.1% deep dimming without stroboscopic effects requires highly sophisticated driver architecture. Standard drivers rely heavily on low-frequency PWM, which creates an inherent on/off strobing effect. While imperceptible at high brightness, this frequency becomes jarringly visible at ultra-low duty cycles, causing visual fatigue and ruining the architectural ambiance.

LEDER Illumination overcomes this physical limitation by employing a hybrid dimming methodology. By utilizing Constant Current Reduction (CCR) for the upper dimming range (100% down to 5%) and seamlessly transitioning to ultra-high-frequency PWM (>3000 Hz) for the final 5% down to 0.1%, the light source maintains absolute stability.

Data Point https://www.google.com/search?q=%232: IEC TR 63158 establishes objective methods for assessing stroboscopic effects. To maintain visual comfort in luxury hospitality and comply with ENEC standards, the Stroboscopic Visibility Measure (SVM) must remain below 0.4, and modulation depth must be strictly controlled even at 0.1% output.

DALI-2 and Logarithmic Dimming Curves

For seamless architectural integration, LEDER Illumination’s 0.1% dimming drivers utilize DALI-2 DT6 and DT8 protocols. This allows lighting designers to program highly specific logarithmic dimming curves within their BIM models. Unlike linear dimming, which appears abrupt at low levels, logarithmic dimming maps directly to human eye sensitivity, ensuring a luxurious, imperceptible "fade to black" essential for theatrical curtain drops or intimate dining transitions.

Technical Comparison: Standard Drivers vs. LEDER Illumination 0.1% Architecture

Data Point https://www.google.com/search?q=%233: European EN 12464-1 standards for indoor lighting dictate that specific high-end visual tasks must maintain strict Color Rendering Index (CRI) stability. LEDER Illumination ensures CRI/Ra>90 is preserved even at 0.1% output, preventing the "graying" or color shift common in standard LEDs.

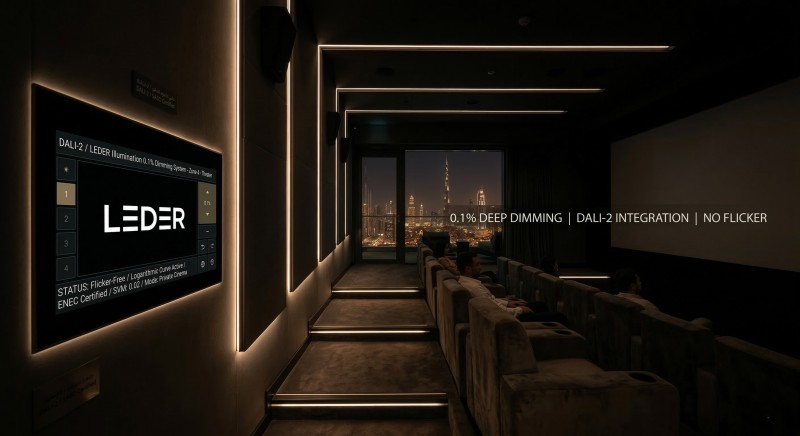

Case Study: High-End Private Cinema Project, Dubai, UAE

Context: A luxury residential compound in Dubai required a state-of-the-art private cinema. The lighting design specified zero ambient light spillage during screenings, necessitating an ultra-smooth fade from 100% down to complete darkness without any stepping or flicker that could break the cinematic immersion.

Actions: The consulting architects integrated LEDER Illumination’s DALI-2 compatible 0.1% deep dimming drivers, paired with high-CRI linear fixtures outlining the theater steps and acoustic panels. The system was programmed with a custom 15-second logarithmic fade curve.

Results/Metrics: * Achieved absolute zero light jitter at the critical 0.1% to 1% transition phase.

• Full compliance with SASO regulations regarding thermal management in the Middle East's high-heat environment.

• Provided lighting designers with an SVM of 0.02, far exceeding baseline regional requirements for visual comfort.

Lessons: Standard commercial drivers are incapable of meeting the extreme dark-field demands of luxury entertainment spaces. Specifying high-frequency hybrid drivers is a non-negotiable requirement for high-end architectural aesthetics.

Bridging Architectural Vision and Procurement

At LEDER Illumination, our focus is on bringing complex architectural visions to life through superior lighting design, BIM support, and highly calibrated systems. We partner with lighting designers and architects across Europe, the Middle East, and Oceania to ensure that every lux is intentional.

Note for large-scale developments: While LEDER Illumination engineers your high-end custom architectural aesthetics, standardized volume procurement for the broader project footprint is seamlessly supported by the manufacturing powerhouse of our parent base, LEDER Lighting. This ensures you receive both boutique design consultation and uncompromising supply chain efficiency.

Next Steps for Your Project:

• Consult with Our Designers

• Request a Project Simulation

• Book a Technical Consultation

FAQs

Q1: Why do standard LED drivers flicker or "jitter" when dimmed below 5%?Standard drivers typically use low-frequency Pulse Width Modulation (PWM) to dim LEDs. At extremely low outputs (<5%), the duty cycle (the time the LED is "on") becomes so short that the human eye can perceive the gaps between pulses, resulting in visible flicker or jitter. LEDER Illumination solves this by utilizing ultra-high-frequency PWM (>3000 Hz) combined with Constant Current Reduction (CCR), making the pulses entirely imperceptible to the human eye.

Q2: How does the DALI-2 protocol enhance the 0.1% dimming experience in high-end projects?DALI-2 (specifically DT6 and DT8 protocols) provides precise two-way digital communication between the controller and the driver. It allows architects and designers to program highly accurate logarithmic dimming curves. This ensures that the transition from 1% to 0.1% is incredibly smooth and gradual, matching the natural dilation of the human pupil, rather than "snapping" off abruptly.

Q3: Does dimming to 0.1% negatively impact the Color Rendering Index (CRI)?In low-quality drivers, deep dimming often causes the LED to operate outside its optimal forward voltage range, leading to a noticeable color shift (usually a green or gray tint). LEDER Illumination's sophisticated driver architecture maintains stable forward voltage even at extreme dimming levels, ensuring that architectural finishes and food presentations maintain a CRI of >90, preserving true visual ambiance.

Q4: Do your products hold the necessary certifications for clearing Saudi customs (SABER/SASO)?A4: Absolutely. LEDER Lighting strictly adheres to international compliance. Our bulk commercial lines hold CE, CB, and SASO certifications, ensuring frictionless customs clearance and local regulatory compliance for our Middle Eastern B2B partners.

Q5: How do we verify compatibility before ordering a 40HQ container?A5: We strongly encourage prototype matching. You can send us the exact dimmer models you plan to use locally, or we can send you a small sample batch of our drivers for on-site testing. Once compatibility is proven, we lock down the exact BOM (Bill of Materials) for your mass production run.
